RIB King Evo Kit Swing Gate Motor

Product Overview

RIB King Evo Kit is an all-in-one swing gate automation system for Abu Dhabi customers who need strong, reliable, and quiet gate operation. The official RIB product page confirms KIT KING EVO is designed for swing gates weighing up to 400 kg, while the KING EVO operator is suitable for each gate leaf up to 4 m long and 400 kg. This kit is ideal for residential and commercial swing gates where durability, smooth operation, and complete automation accessories are required. It includes two KING EVO operators, control board, transmitters, photocells, blinker, warning plate, and manuals.

Key Features and Technical Specifications

• Brand: RIB.
• Product name: KIT KING EVO.
• Operator model: KING EVO.
• Product type: Irreversible electromechanical swing gate operator.
• Suitable for swing gates weighing up to 400 kg.
• Suitable for each gate leaf up to 4 m long and 400 kg.
• Maximum travel: 368 mm.
• Average opening time: 20–25 seconds.
• Thrust force: 2570 N.
• Power supply: 230V.
• Motor capacity: 255 W.
• Operator weight: 12.5 kg.
• Protection grade: IP44.
• Suggested daily cycles: 60.
• Service: 60%.
• Operating temperature: -10°C to +55°C.
• Mechanical stopper provided for open position.
• Rear and front attachments made in steel.
• Adjustable column attachments do not require welding.
• Electric lock required if the gate leaf is longer than 2.5 m.

Use Cases

• Residential swing gates.
• Villa entrance gates.
• Commercial entrance gates.
• Parking entrance swing gates.
• Private property access gates.
• Medium-duty swing gate automation.
• Gates requiring two-leaf automation with safety photocells and warning light.

Compatibility and Installation Notes

RIB King Evo Kit is designed for swing gates with leaves up to 4 m and 400 kg per leaf. If the gate leaf is longer than 2.5 m, RIB specifies that an electric lock must be fitted to ensure efficient closing. Before installation, the gate structure, hinge condition, leaf alignment, opening angle, pillar space, mechanical stops, safety photocells, and power supply should be checked carefully. For official technical reference, see the RIB KING EVO product information. Professional installation is recommended to ensure correct bracket positioning, safe force adjustment, control board setup, photocell alignment, and reliable long-term operation.

Packing Includes

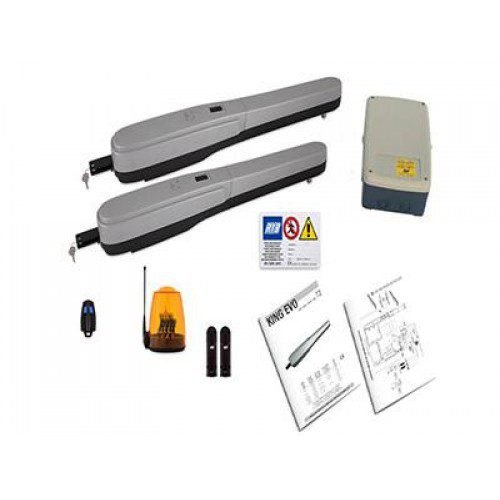

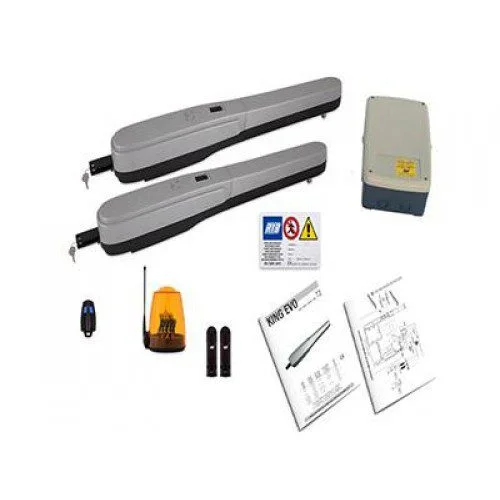

• 2 x RIB KING EVO swing gate operators.
• 1 x B2-CRX electronic PC board.
• 1 x APP card for control via Bluetooth.
• 1 x SUN 2CH 2-channel transmitter.
• 1 x Pair of FIT SLIM photocells.
• 1 x SAIL blinker with built-in 433 MHz antenna.
• 1 x Warning plate and instruction manuals.
