ROGER M30/326 400kg Sliding Gate Motor Kit

Product Overview

ROGER M30/326 Motor is a 230V electromechanical sliding gate motor kit for Abu Dhabi customers who need reliable automation for gates up to 400kg. The official Roger Technology product page confirms KIT M30/326 as an irreversible sliding gate motor kit with built-in H70 control unit, optical encoder and magnetic limit switch. The rough data also mentioned H30/643 and H30/646, but those are separate H30 series models rated up to 600kg, not the verified M30/326 400kg kit. This motor is suitable for residential and light commercial sliding gate automation.

Key Features and Technical Specifications

• Brand: Roger Technology
• Verified kit model: KIT M30/326
• Motor included in kit: M30/324
• Product type: Electromechanical sliding gate motor kit
• Gate type: Sliding gates
• Maximum gate weight: 400kg
• Power line supply: 230V AC, 50Hz
• Motor power supply: 230V AC
• Rated power: 210W
• Frequency of use: 50%
• Thrust: 250N
• Operating temperature: -20°C to +55°C
• Protection level: IP44
• Reducer type: Irreversible
• Manoeuvre speed: 9.5m/min, 0.16m/s
• Motor thermal protection: 150°C
• Incorporated condenser: 12.5µF
• Limit switch: Magnetic
• Onboard control unit: H70/104AC
• Encoder: Optical
• Exit gear type: Z15/module 4
• Product dimensions: 250 x 165 x 290mm
• Packed product weight: 11.1kg
• Items per pallet/carton: 44
• Rough H30/643 and H30/646 reference: Not applicable to this verified 400kg M30/326 kit.

Use Cases

• Residential sliding gates
• Villa entrance gates
• Light commercial sliding gates
• Small parking entrances
• Rack-driven automatic gate systems
• Controlled vehicle access points in Abu Dhabi

Compatibility and Installation Notes

The ROGER M30/326 Motor is compatible with sliding gates up to 400kg when the gate is correctly aligned, moves smoothly on its track and is fitted with suitable rack, end stops and safety accessories. Professional installation is recommended because the installer must correctly fix the motor base, align the rack and pinion, wire the H70/104AC control unit, adjust the magnetic limit switch, test photocells and verify safe force settings. For official product composition and technical data, refer to the Roger Technology product page.

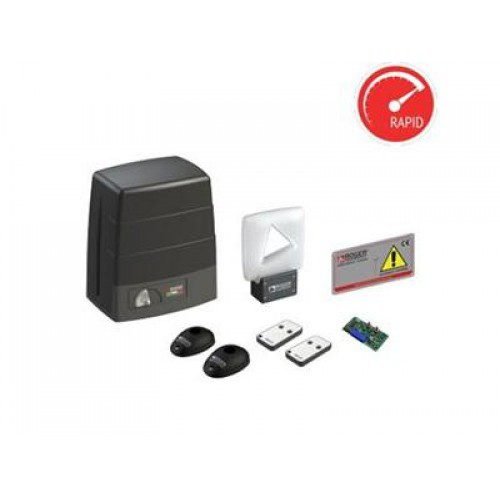

Packing Includes

• 1 x ROGER M30/324 electromechanical sliding gate motor
• 1 x Built-in H70 series control unit
• 1 x H93/RX20/I plug-in radio receiver
• 2 x T80/TX2 remote controls
• 1 x R90/F2ES pair of external synchronized photocells
• 1 x FIFTHY/230 LED flashing light with integrated antenna
• 1 x R99/C/001 “Automatic Opening” signboard
• 1 x Magnetic limit switch kit
• 1 x Fixing base with tie rods and screws
