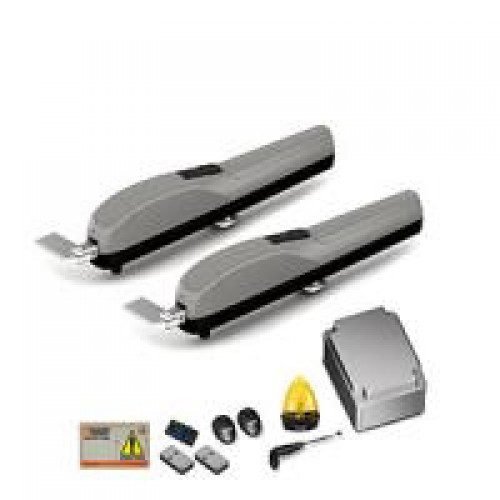

Roger Technology M20/340 Swing Gate Motor

The Roger M20/340’s onboard encoder tracks the actuator’s exact position throughout every gate cycle — a feature the R20/310 and R20/510 do not have. The encoder enables the compatible Roger control unit to provide precise obstacle detection (detecting resistance changes by position deviation rather than time delay), programmable slowdown points at specific positions in the arc, and partial opening for pedestrian use. For Abu Dhabi villa gates where precision gate management, smooth deceleration, and reliable obstacle response are priorities, the M20/340’s encoder places it a significant step above the encoder-free R20 range.

The Roger M20/340 uses an electric limit switch to detect the gate’s position, while the R20 series uses a microswitch. An electric limit switch sends a continuous electronic signal to the control unit that can be monitored and adjusted in software without physically repositioning a mechanical contact. A microswitch is a physical contact that opens or closes at a fixed mechanical point. The electric limit switch on the M20/340 works alongside the onboard encoder, providing a reference position that the encoder then tracks from, improving overall positioning accuracy throughout the gate’s service life.

Roger Technology does not publish the following specifications for the M20/340 in the available technical documentation: IP protection rating, maximum gate leaf weight, thrust force in N, opening speed, and duty cycle percentage. Buyers should request the official Roger Technology M20/340 datasheet before specifying this motor for a specific gate, as these parameters are critical for confirming suitability for Abu Dhabi outdoor use, gate weight, and daily usage requirements. POWERgate Abu Dhabi can assist with obtaining the manufacturer’s technical data before purchase.

Roger Technology describes the M20/340 as a short and fast actuator — a compact linear motor with a smaller overall housing than the R20 series (which reaches 1088mm for the R20/510). The shorter housing reduces the clearance space required on the gate pillar and simplifies bracket geometry for 3m gates. The aluminium body keeps weight low compared to cast iron or steel-bodied actuators while maintaining structural rigidity. For Abu Dhabi villa gates where pillar face space is limited or a discreet motor profile is preferred, the M20/340’s compact form is a meaningful installation advantage.

The Roger M20/340 carries a 24-month manufacturer warranty. This listing supplies the single motor unit only — a complete installation additionally requires a compatible Roger Technology control unit (that correctly interprets the onboard encoder signal), safety photocells, a radio receiver and transmitters, a flashing light, and mechanical stops. Roger Technology states that the correct control panel is essential for proper encoder-managed operation. IP rating and gate weight limits are unconfirmed by manufacturer documentation — confirm with POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com before installation.
