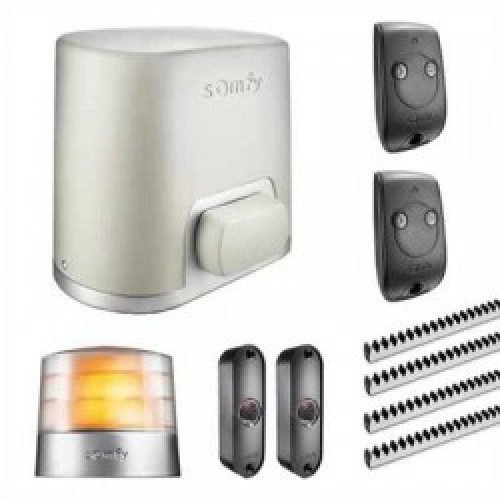

Somfy Elixo Smart io sliding gate motor kit with remotes, photocells, rack and light
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

SOMFY ELIXO Smart io Sliding Gate Motor 300 Kg

24V sliding gate motor for rail-mounted gates up to 300 kg, with io 868–870 MHz radio, encoder control, 230V supply, IP44 protection, photocell compatibility, and backup battery input.

AED 1,575

Product price:AED 1,575
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

SOMFY ELIXO gate motor is a smart sliding gate automation solution for rail-mounted gates up to 300 kg and 6 m wide, suitable for Abu Dhabi villas, residential properties, and light access control entrances. The ELIXO Smart io uses a 24V motor, io radio technology, encoder control, and adjustable operating parameters for smooth and safe gate movement. It supports full and pedestrian opening commands, automatic closing setup, obstacle detection sensitivity adjustment, external lighting control, and compatibility with safety accessories such as photocells and safety edge systems.

Key Features and Technical Specifications

  • Brand: Somfy
  • Product name: ELIXO Smart io
  • Official reference: 1216532 – ELIXO SMART IO PACK ECO CFT
  • Product type: Sliding gate motor for rack-driven gates
  • Maximum rail-mounted gate weight: 300 kg
  • Maximum rail-mounted gate passage width: 6 m
  • Maximum self-supporting gate weight: 200 kg
  • Maximum self-supporting gate passage width: 4 m
  • Motor type: 24V motor
  • Power supply: 220–230V, 50/60 Hz
  • Maximum power consumption: 600W with remote lighting, 500W lighting load
  • Accessories power supply output: 24V, 400 mA maximum
  • Orange light output: 24V, 15W
  • Radio frequency: 868–870 MHz io
  • Radio power: Less than 25 mW
  • Memory capacity: 38 channels
  • Protection rating: IP44
  • Insulation class: Class I
  • Operating temperature: -20°C to +60°C
  • Product dimensions without packaging: 263 x 163 x 267 mm
  • Product weight without packaging: 6.493 kg
  • Standby power consumption: 5W
  • Manual release: Internal manual release possible
  • Backup battery input: Compatible with 9.6V battery pack, part no. 9001001
  • Backup battery autonomy: Up to 24 hours / 3 cycles depending on gate
  • Adjustable parameters: gate speed, slowdown zone, soft stop zone, and obstacle detection sensitivity
  • Photocell compatibility: Standard 4-wire photocells or Somfy 2-wire BUS photocells
  • External lighting output: Dry contact, 230V compatible
  • Gate end stops on rail: Not required by manufacturer for this system

Use Cases

Compatibility and Installation Notes

SOMFY ELIXO gate motor is compatible with rail-mounted sliding gates up to 300 kg and 6 m passage width, or self-supporting sliding gates up to 200 kg and 4 m passage width, when the gate structure is mechanically sound and moves smoothly before automation. Installation requires correct rack positioning, safe 230V electrical wiring, accessory wiring, photocell configuration, and final safety testing. The manufacturer states that power supply installation must comply with local standards and be carried out by qualified personnel; for full setup guidance, refer to the Somfy installation guide. Professional installation is recommended to ensure correct programming, safe obstacle detection, and reliable operation.

Packing Includes

  • 1 x SOMFY ELIXO Smart io motor
  • 2 x Keygo io remote controls
  • 1 x Orange light
  • 1 x Photocell kit
  • 1 x Metal template
  • 1 x Set of screws
  • 1 x Set of user instructions

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable smart gate automation products with local technical support, product guidance, and professional installation assistance. We help customers select the correct Somfy motor and compatible accessories based on gate size, usage, and safety requirements.

Buy SOMFY ELIXO Smart io today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “SOMFY ELIXO Smart io Sliding Gate Motor 300 Kg”

Your email address will not be published. Required fields are marked *

The SOMFY ELIXO Smart io uses io-homecontrol® radio technology at 868–870 MHz — a completely different protocol from the RTS 433.42 MHz used by the SOMFY ELIXO 800 and ELIXO 2000. io is SOMFY’s bidirectional smart home protocol where the motor confirms each command and reports gate status back to the controller. It integrates natively into Somfy TaHoma smart home systems, allowing the ELIXO Smart io to appear alongside other io-connected devices such as blinds, lights, and alarms in a unified Abu Dhabi smart home setup.

SOMFY explicitly states no gate end stops are required on the rail for the ELIXO Smart io. Traditional sliding gate motors need physical end-stop brackets bolted to the rail to trigger the limit switch at the open and closed positions. The Smart io’s encoder and adjustable soft stop zone determine the stopping position electronically without physical contact. This simplifies Abu Dhabi rail track installations, eliminates end-stop bracket drilling and alignment, and removes a common source of limit position drift over time.

The SOMFY ELIXO Smart io specifies two gate configurations. Rail-mounted gates (guided by a ground rail and top guide) can weigh up to 300 kg with a 6m passage — the rail bears the weight and provides stability. Self-supporting gates (cantilevered, with no ground rail) are limited to 200 kg and 4m passage because the gate leaf must be balanced entirely by the track wheels without ground rail support. This makes the Smart io one of the few motors to officially specify cantilever gate capacity.

The SOMFY ELIXO Smart io’s 9.6V battery pack (part 9001001) provides either 24 hours of standby or 3 complete gate cycles during mains failure — whichever occurs first. Three cycles means 3 full open-and-close sequences from battery only. For Abu Dhabi properties where a power cut overnight needs to allow gate access the next morning, 24 hours of standby confirms the motor remains ready, but only 3 actual movement cycles are available from the compact 9.6V battery pack.

The SOMFY ELIXO Smart io accepts both standard 4-wire photocells and SOMFY 2-wire BUS photocells. BUS photocells share a two-wire bus and communicate digitally with the motor board, reducing cabling compared to 4-wire connections. Slowdown zone and soft stop zone are separately adjustable parameters — slowdown controls where the gate starts decelerating; soft stop controls the final distance of near-zero-speed travel before stopping. Kit includes: motor, 2× Keygo io remotes, orange light, photocell kit, metal template, and screws. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
