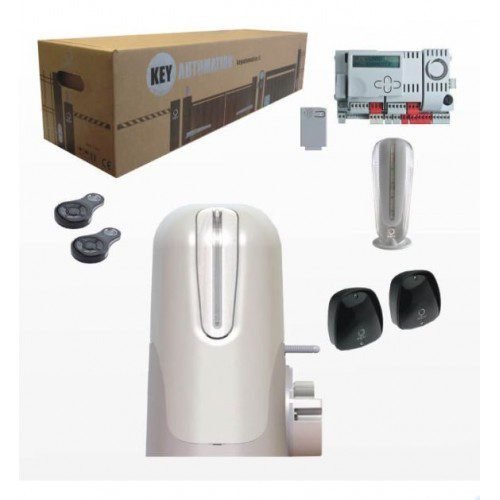

KEY SUN 1100KG sliding gate motor kit with remotes and control accessories
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

KEY SUN 1100KG Sliding Gate Motor Kit

24V DC sliding gate motor kit for gates up to 1100kg, with 14A control unit, 360W power, 20 cm/s speed, IP44 protection and intensive-use operation.



Category: Tags: , , , Brand:

Product Overview

KEY SUN 1100KG is a 24V DC sliding gate motor kit designed for intensive-use sliding gates up to 1100kg. It is suitable for Abu Dhabi residential, commercial, villa, warehouse, and industrial access points where strong gate automation and controlled movement are required. The KSUN11024KK kit uses a 14A control unit with slowdown function, electric limit switches, and a 230V AC power supply. With 20 cm/s speed, 80% duty cycle, IP44 protection, and a compact motor body, this system is built for reliable high-frequency gate operation.

Key Features and Technical Specifications

  • Product name: KEY SUN 1100KG Sliding Gate Motor Kit
  • Model/code: KSUN11024KK
  • Product code: 900KSUN11024KK
  • Motor type: 24V DC sliding gate automation kit
  • Maximum leaf weight: 1100kg
  • Speed: 20 cm/s
  • Torque: 38Nm
  • Duty cycle: 80%
  • Control unit: 14A
  • Supply voltage: 230V AC
  • AC voltage frequency: 50/60Hz
  • Nominal current: 1.8A
  • Nominal power: 360W
  • Appliance isolation class: Class I
  • Degree of protection: IP44
  • Dimensions: 330 × 210 × 300mm
  • Item weight: 14.9kg
  • Minimum operating temperature: -20°C
  • Maximum operating temperature: +55°C
  • Control function: Slowdown supported
  • Limit switches: Electric limit switches
  • Application: Intensive-use sliding gates

Use Cases

  • Residential sliding gates
  • Villa entrance gates
  • Commercial property gates
  • Parking entrance gates
  • Warehouse access gates
  • Industrial sliding gates within the 1100kg rating
  • High-frequency gate automation points
  • Access-control entrances requiring intensive-use operation

Compatibility and Installation Notes

The KEY SUN 1100KG kit is compatible with sliding gates up to 1100kg, provided the gate track, rollers, rack alignment, end stops, electrical supply, and safety accessories are correctly prepared. Professional installation is strongly recommended because poor foundation work, wrong rack positioning, unsafe wiring, or incorrect control-unit setup can reduce motor performance and create safety risks. Installers should review the official KEY Automation KSUN11024KK product page before installation to confirm technical data, compatibility, and commissioning requirements.

Packing Includes

  • 1 × KEY SUN 1100KG sliding gate motor kit
  • 1 × Integrated 14A control unit
  • 2 × KEY SUB44WF 4-channel transmitters, white colour, XR rolling code 433MHz
  • 1 × FT33 pair of photocells for external use and flush mounting
  • 1 × Built-in receiver
  • 1 × 900ECLIPSE LED flashing light with crepuscular sensor and built-in antenna
  • 1 × 4m nylon rack
  • 1 × Push button

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies the KEY SUN 1100KG with local support, product guidance, and practical advice for correct gate motor selection. We help Abu Dhabi customers choose automation based on gate weight, usage frequency, safety needs, and installation conditions.

Buy KEY SUN 1100KG today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “KEY SUN 1100KG Sliding Gate Motor Kit”

Your email address will not be published. Required fields are marked *

The KEY SUN 1100KG (KSUN11024KK) is a 24V DC kit rated for 1100 kg at 20 cm/s with 38 Nm torque, 80% duty cycle, 14A control unit, electric limit switches, and IP44. It includes ECLIPSE LED blinker, FT33 flush-mount photocells, KEY SUB44WF 433 MHz transmitters, built-in receiver, 4m nylon rack, and push button. For Abu Dhabi warehouse entrances, villa compound gates, and commercial parking where high-frequency 24V automation is required, the SUN 1100KG provides a complete ready-to-install solution.

The KEY 900ECLIPSE LED flashing light has a built-in crepuscular sensor that automatically activates the blinker’s ambient status light when it detects low surrounding light levels, without requiring a separate photocell or manual switch. During Abu Dhabi’s overnight hours or in covered parking areas, the crepuscular sensor keeps the gate’s visual warning active automatically. No other flashing light in any motor kit in the POWERgate Abu Dhabi range specifies this ambient-light activation feature as standard.

The KEY SUN 1100KG’s 80% duty cycle is exceptionally high for a 1100 kg sliding gate motor. Most motors in this weight class are rated at 40–50% duty. At 80%, the SUN 1100KG can run for 48 minutes of every hour under mains, making it genuinely intensive-use rather than simply heavy-duty in classification. The 14A control unit and 24V DC motor architecture manage thermal load efficiently enough to sustain this frequency for commercial and high-traffic Abu Dhabi gate applications.

The KEY SUN 1100KG uses electric limit switches rather than the magnetic limit switches found on most motors in the range. Electric (electromechanical) switches use a physical contact triggered by a cam on the motor, providing a simple, reliable stopping signal at low cost. The FT33 photocells are designed for flush mounting into gate pillars or walls, concealing the photocell housing behind the surface for a cleaner installation finish compared to surface-mounted beam pairs used by most other motor kits. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
