SOMMER Twist 350 Rapido Swing Gate Motor Kit

2-leaf swing gate operator set with two twist 350 rapido drives, DTA-1 control unit, SOMup4 S2 868.95MHz receiver, Pearl Vibe transmitter, IP44 protection and 300kg gate weight capacity.



AED 3,450

Product price:AED 3,450
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

SOMMER Twist 350 Kit is a 2-leaf swing gate operator set for reliable gate automation in Abu Dhabi. The verified SOMMER article number is S12713-00001, listed as twist 350 rapido set 2-leaf with 868.95 MHz SOMloq2 radio technology. It is designed for swing gates up to 300 kg gate weight and up to 121° opening angle. The set includes two twist 350 rapido operators, DTA-1 control unit, SOMup4 S2 radio receiver, and Pearl Vibe transmitter. It is suitable for customers who need smooth, secure, and fast 2-leaf swing gate automation.

Key Features and Technical Specifications

  • Brand: SOMMER.
  • Product name: twist 350 rapido set 2-leaf.
  • Article number: S12713-00001.
  • Version: 868.95 MHz SOMMER version.
  • Colour/version: Anthracite.
  • Power plug: Schuko.
  • Radio frequency: 868.950 MHz SOMloq2.
  • Radio memory locations: 40.
  • Transmitter management: SOMloq2 868.3 / 868.95 / 922.5 MHz, only when MEMO slot is available.
  • Control unit: DTA-1 in housing, IP65.
  • Radio receiver: SOMup4 S2, FM 868.95 MHz SOMloq2, pluggable.
  • Protection class: I.
  • Operator IP protection: IP44.
  • Standby power consumption: 3.80 W.
  • Nominal voltage: 230 V.
  • Rated voltage range: 220–240 V.
  • Nominal frequency: 50–60 Hz.
  • Nominal pulling force: 830 N.
  • Maximum pull and pushing force: 2500 N.
  • Maximum gate weight: 300 kg.
  • Maximum gate opening angle: 121°.
  • Maximum gate inclination: 0%.
  • Duty cycle: ED 40% S3.
  • Temperature range: -30°C to +70°C.
  • The twist 350 rapido offers up to 30% higher feed speed than the standard twist 350 series.
  • Can be used for 1-wing or 2-wing swing gate operation.
  • Universal mounting for right or left stop.

Use Cases

Compatibility and Installation Notes

SOMMER Twist 350 Kit is designed for 1-leaf and 2-leaf swing gate installations, with the twist 350 rapido version supporting up to 300 kg gate weight and up to 3 m wing width, depending on installation conditions. The official manual states that the twist 350 should be operated only with the DTA-1 control unit and only on gates that comply with valid standards such as EN 12453, EN 12604, and EN 12605. Safety devices such as photo eyes, safety contact strips, warning lights, and correct mechanical stops should be considered according to site requirements. For detailed setup and safety instructions, see the official SOMMER installation manual. Professional installation is recommended because the manufacturer specifies that skilled mechanics are required, and only qualified electricians should connect the control unit to the power supply.

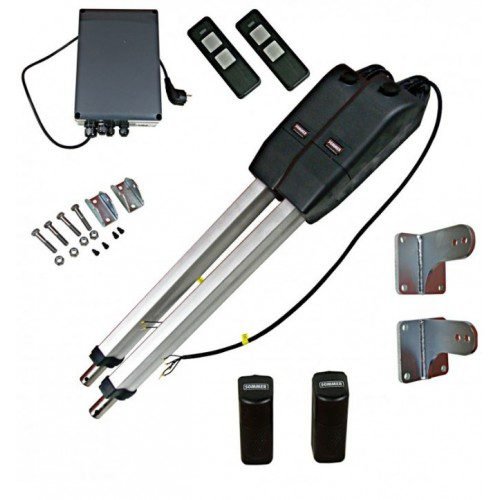

Packing Includes

  • 2 x twist 350 rapido swing gate operators.
  • 1 x DTA-1 control unit in housing, IP65.
  • 1 x SOMup4 S2 radio receiver, FM 868.95 MHz SOMloq2.
  • 1 x Pearl Vibe 4-command handheld transmitter, article #4019V000.
  • Post and gate leaf fittings.
  • Assembly and operating manual.
  • Metal fixing accessories including bolts, locknuts, and lamellar plugs.

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi provides local automation product support, reliable guidance, and professional assistance for customers in Abu Dhabi. We help you choose the right swing gate motor kit based on gate size, weight, opening angle, safety accessories, and installation requirements.

Buy SOMMER Twist 350 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “SOMMER Twist 350 Rapido Swing Gate Motor Kit”

Your email address will not be published. Required fields are marked *

The SOMMER twist 350 rapido and the Sommer twist 200 E share the same -30°C to +70°C range, IP44 operator, IP65 control unit, SOMloq2 868.95 MHz, and 300 kg gate weight limit. The twist 350 rapido upgrades to ED 40% S3 duty, 830N nominal / 2500N max force, 121° opening angle, universal right/left mount, and DTA-1 control unit. The twist 200 E carries S3 = 15% duty and 660N nominal. The twist 350 rapido also requires flat ground (0% inclination) vs the twist 200 E’s 10% slope tolerance.

The rapido designation confirms this operator delivers up to 30% higher feed speed than the standard SOMMER twist 350 series. The standard twist 350 and the twist 350 rapido share the same mechanical platform but the rapido version uses a higher output gear ratio to increase rod movement speed per motor revolution. For Abu Dhabi villa gates where faster gate opening reduces vehicle waiting time at the entrance, the rapido’s speed advantage is a practical daily benefit. The higher duty cycle of ED 40% S3 ensures the rapido sustains frequent fast cycles without thermal overload.

The SOMMER twist 350 rapido is rated at ED 40% S3 — significantly higher than the twist 200 E’s S3 = 15%. At 40%, the twist 350 rapido can operate for 24 minutes of every hour before thermal rest, versus just 9 minutes for the 15% twist 200 E. For Abu Dhabi properties with above-average daily gate cycles — domestic staff shifts, multiple vehicle movements, or shared compound access — the 40% rating provides comfortable headroom. This makes the twist 350 rapido the better choice wherever gate frequency is expected to exceed light residential use.

The SOMMER twist 350 rapido specifies a maximum gate inclination of 0% — the gate and its pivot axis must be on perfectly level ground. The twist 200 E tolerates up to 10% slope. The twist 350 rapido’s screw mechanism geometry and internal limit switch calibration assume a horizontal hinge axis; any slope introduces angular offset that changes the effective stroke per degree of arc, shifting the travel calibration and potentially causing the operator to stop short of or beyond the intended position. For Abu Dhabi sites where the driveway entrance has a gradient, the twist 200 E is the appropriate SOMMER selection.

The SOMMER twist 350 rapido supports a 121° maximum gate opening angle, allowing the gate leaf to swing nearly flat to the boundary wall for maximum vehicle clearance. The universal mounting design accommodates both right-hand and left-hand gate stops without needing separate left or right motor variants — the same operator converts on-site, simplifying stock management. For Abu Dhabi villa installers fitting multiple gates across different properties, universal mounting reduces the risk of ordering the wrong orientation and allows a single motor model to cover all standard double-leaf configurations.

The SOMMER twist 350 rapido carries a 24-month manufacturer warranty. SOMMER mandates the DTA-1 control unit exclusively — no other panel supports the SOMloq2 protocol or the rapido’s force monitoring correctly. Installation requires skilled mechanics and qualified electricians per the official manual. The gate surface must be perfectly flat (0% inclination). Mechanical stops are compulsory at open and close positions. Photo eyes and safety contact strips should be added for full EN 12453 compliance. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
