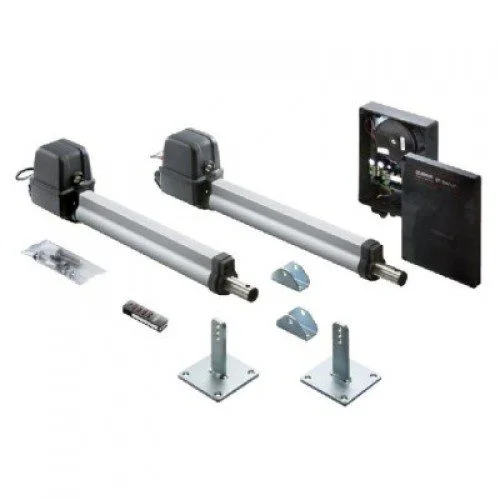

Sommer twist 200 E gate motor kit with operators, control unit and fittings
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

Sommer twist 200 E Swing Gate Motor Kit

2-leaf swing gate operator kit with DSTA-24 control unit, IP44 motors, IP65 housing, 868.95MHz SOMloq2 receiver, 390mm travel, 2000N force and 300kg per leaf capacity.



AED 2,450

Product price:AED 2,450
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

Sommer twist 200 E Gate Motor is a 2-leaf swing gate automation kit for Abu Dhabi residential entrances, villa gates, and private access gates. The official SOMMER manual confirms the model as twist 200 E, designed for one-leaf and two-leaf swing gate systems when used with the DSTA-24 control unit. It supports gate leaves up to 300 kg and up to 2.5 m leaf length, depending on installation conditions. The kit includes operators, control unit, radio receiver, transmitter, and mounting fittings for a reliable swing gate automation setup.

Key Features and Technical Specifications

  • Brand: SOMMER
  • Correct official model: twist 200 E
  • Article number: S11521-00001
  • Product type: Swing gate operator set
  • Gate type: 1-leaf and 2-leaf swing gate systems
  • Operator use: Only with DSTA-24 control unit
  • Max gate weight per leaf: 300 kg
  • Max gate leaf length: 2.5 m
  • Minimum leaf length per leaf: 0.825 m
  • Max gate inclination: 10%
  • Mains voltage: AC 220–240 V
  • Rated frequency: 50–60 Hz
  • Operating time: S3 = 15%
  • Travel length / movement range: 390 mm
  • Operating temperature: -30°C to +70°C
  • Emission value: 47 dB(A)
  • IP protection class operator: IP44
  • IP protection class control unit: IP65
  • Max feed speed: 16.5 mm/s
  • Max traction and pressure force per leaf: 2,000 N
  • Rated pulling and pushing force per leaf: 660 N
  • Max power consumption per leaf: 140 W
  • Max current consumption per leaf: 0.8 A
  • Rated power consumption per leaf: 75 W
  • Rated current consumption per leaf: 0.45 A
  • Power consumption in power-saving mode: 2.9 W
  • Radio frequency: 868.95 MHz SOMloq2
  • Radio memory positions: 40; expandable to 450 with Memo memory extension
  • Manual unlocking possible in the event of power failure
  • Internal limit switches for gate open and gate close end positions
  • Automatic force monitoring through the control unit
  • Safety devices such as photo eye and safety contact strip can be connected

Use Cases

  • Residential swing gates
  • Villa entrance gates
  • Private home access gates
  • Two-leaf swing gate automation
  • Compact residential parking entrances
  • Gate systems where 300 kg per leaf and 2.5 m leaf length are suitable
  • Private, non-industrial swing gate installations

Compatibility and Installation Notes

The Sommer twist 200 E Gate Motor must be used with the DSTA-24 control unit and is intended for private, non-industrial swing gate systems. SOMMER states that stable and rigid gate leaves should be used, and the gate hinges must have little play for correct operation. Mechanical stops are required at the gate open and gate close positions, and the control unit should be connected by a qualified electrician. For detailed wiring, A/B dimensions, safety instructions, and commissioning steps, refer to the official SOMMER installation and operating manual. Professional installation is recommended to ensure correct bracket positioning, electrical safety, force learning, radio programming, and final gate safety testing.

Packing Includes

  • 2 x twist 200 E swing gate operators with cable
  • 1 x Control unit in housing with transformer and power plug
  • 1 x SOMup4 radio receiver FM 868.95 MHz
  • 2 x Pearl Vibe 4-command handheld transmitters
  • 2 x Gate leaf fittings
  • 2 x Post or pillar fittings
  • 4 x Hex bolts M10 x 55 mm
  • 4 x Locknuts M10
  • 4 x Lamellar plugs
  • 1 x Installation and operating manual
  • 1 x Blinker light

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable swing gate automation products with local support for customers in Abu Dhabi. We help buyers choose the right gate motor kit, accessories, and installation solution for smooth and safe long-term gate operation.

Buy Sommer twist 200 E today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “Sommer twist 200 E Swing Gate Motor Kit”

Your email address will not be published. Required fields are marked *

Both listings use the identical twist 200 E operator at -30°C/+70°C, 47 dB(A), IP44 motor / IP65 control unit, 2000N/660N, 390mm stroke, 16.5mm/s, SOMloq2 868 MHz. This listing (AED 2,450) includes 2 x Pearl Vibe 4-command transmitters, complete hardware (4 x M10×55mm hex bolts, 4 x locknuts M10, 4 x lamellar plugs), 2 x gate leaf fittings, and 2 x post fittings. The Sommer twist 200 E kit (AED 2,150) includes 1 transmitter. The AED 300 premium covers the second transmitter and the complete bolt-and-fitting hardware set.

SOMMER specifies the twist 200 E is only compatible with the DSTA-24 control unit. The DSTA-24 manages the operator’s SOMloq2 868.95 MHz radio protocol, automatic force monitoring, internal limit switch interpretation, S3 duty timing, and power-saving mode switching. Using any other control unit risks incompatible force monitoring thresholds, inability to read the internal limit switches, or loss of the 2.9W power-saving mode. For a motor where force monitoring is a key safety feature — particularly on a 300 kg gate — using the DSTA-24 is a safety requirement, not just a compatibility note.

This kit includes a complete set of fixings: 4 x M10×55mm hex bolts, 4 x M10 locknuts, and 4 x lamellar plugs alongside the 2 x gate leaf fittings and 2 x pillar post fittings. Lamellar plugs are heavy-duty masonry anchors designed for load-bearing fixings into rendered or stone gate pillars — the correct anchoring method for Abu Dhabi gate installations where the pillar material is typically block work or concrete. Having the correct bolt specification and anchor type removes the guesswork from hardware selection, ensures the bracket is rated for the 2000N peak force, and prevents substitution with inadequate fixings.

SOMMER explicitly classifies the twist 200 E as a private, non-industrial swing gate system. This excludes commercial warehouses, factories, logistics facilities, or any entrance where the gate is operated by persons other than the property owner or residents under their direct responsibility. The S3 = 15% duty cycle reflects this — standard residential villa or compound traffic stays comfortably within 15%, but a commercial site with continuous vehicle throughput throughout the day exceeds it. For industrial-duty applications, a motor with a higher service rating and commercial certification is appropriate.

The SOMMER twist 200 E DSTA-24 supports connection of photo eye (photocell) pairs and safety contact strips. A photocell pair provides the primary safety beam across the gate opening, stopping the gate if a vehicle, person, or object interrupts the beam mid-cycle. A safety contact strip is a pressure-sensitive edge fitted to the gate leaf itself that stops the gate on physical contact with an obstacle — providing secondary protection where the photocell beam may not cover. Neither is included in the standard kit; both can be added to achieve full EN 12445 safety compliance for Abu Dhabi automated gate installations.

The Sommer twist 200 E carries a 24-month manufacturer warranty. Critical constraints: gate leaf must be between 0.825m and 2.5m — the minimum is the only published lower leaf limit in the range. Gate hinges must have minimal play and the leaf must not flex or twist during operation. Mechanical stops are mandatory at both open and close positions — the internal limit switches require a physical stop to reference. The mains cable supplied is not approved for permanent outdoor use; correct conduit and protection are required. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
